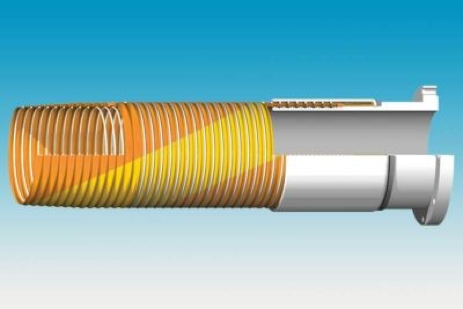

Polypropylene lined composite hose
Polypropylene lined composite hose with polypropylene coated steel inner wire, and galvanized steel outer wire. Engineered with 100% chemical resistant barrier layers embedded in the hose wall to prevent permeation and leakage.
| Size | 1/2” to 10” |
|---|---|
| Fluid | Chemical |
| Temperature | -20～160℃ |
| Working Pressure | 17bar |
| Material | Polypropylene |

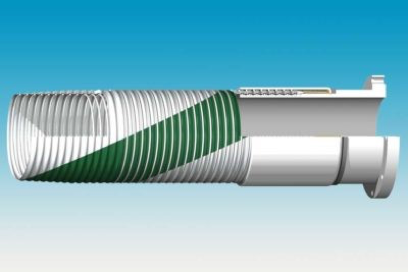

Cryogenic Hose
Nylon lined composite and Polyester lined composite hose assemblies suitable for a wide variety of refrigerated liquefied gasses, liquefied natural gas (LNG) and LPG. Manufactured with high tensile strength T316 stainless steel inner and outer wires with engineered resistant barrier layers embedded in the hose wall to prevent permeation and leakage. Hose assemblies are capable of pressurization and full vacuum with threaded or flanged end connections for the arduous marine service conditions
| Size | 3/4” to 10” |
|---|---|
| Fluid | LNG,LPG |
| Temperature | -200～80℃ |
| Working Pressure | 25bar |
| Material | Nylon / Polyester |
